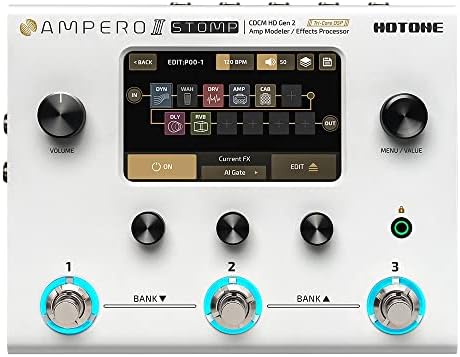

HOTONE Guitar Multi Effects Processor Multi Effects Pedal Touch Screen Guitar

Product Description

“Upgrade” is more than a 7-letter word. It embodies the continuation and evolvement beneath the surface, and embraces revolution and creativity outside the box. It’s what Ampero II Stomp does. Throughout years of grinding to establish its core technologies from empirical practice, Hotone team proudly presents this soul partner for your sophisticated taste in the sound of the music.

1. BALANCED OUTPUT: 1/4″ TRS balanced stereo outputs

2. INPUT: 1/4″ TS unbalanced stereo inputs for guitar or other instruments

3. EXP/CTRL: 1/4″ TRS input, for connecting an external expression pedal/footswitch controller

4. Power Supply Connection: Power supply input (9-18V DC center negative)

5. Power Switch: Turns power on/off

6. VOLUME Knob: Adjusts the overall volume

7. MENU/VALUE Knob (Main Knob): Turning or pressing this knob allows you to change menus and adjust parameters

8. USB: USB 2.0 Type-C jack for connecting to your computer

9. 10. MIDI: Standard 5-pin MIDI input and thru output

11. STEREO FX LOOP: 1/4″ TRS unbalanced stereo input (RETURN)/output(SEND) jacks

12. 13. AUX IN & PHONES: 1/8″ stereo aux input and phones output

14. Display Screen: Displays unit current status. Use the touchscreen to select effects, edit patches, and make tone adjustments

15. Quick Access Knobs: Use to adjust parameters on the lower part of the screen

16. Footswitches: Use to change patches, turn effects on/off, set tap tempo, etc.

17. Device Lock Button: Used to lock or unlock the device

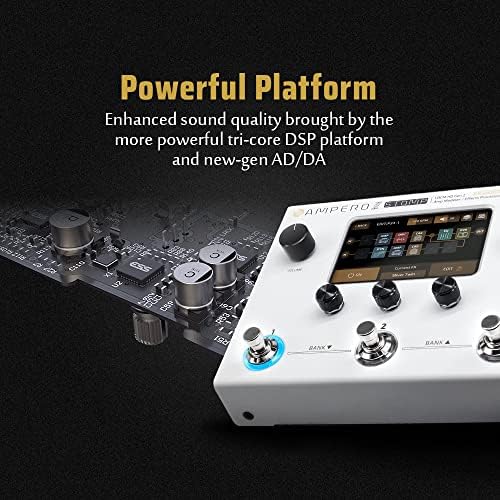

New Station for Signal Processing

Ampero II Stomp implements the brand new tri-core digital platform and independent AD/DA, combined with our more advanced CDCM HD and F.I.R.E modeling technology, creating more musically dynamic and vivid tones.

More Tonal Variations

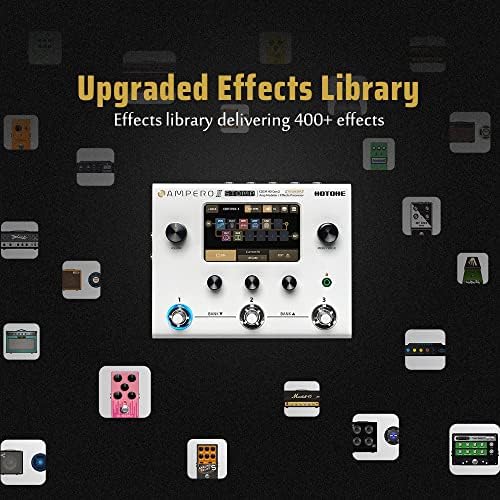

Ampero II Stomp introduces a highly customizable dual effects chain supporting multiple serial/parallel signal routing, up to 12 effects modules can be used simultaneously. Try it as you see fit. Upgraded effects library delivers 400+ effects and supports up to 2048 IR sampling points for better tonal resolution.

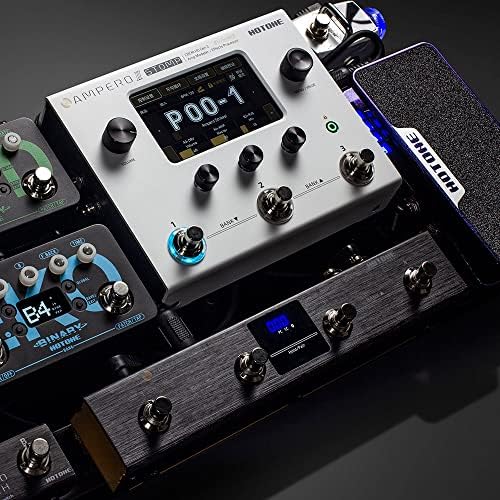

Welcome “Aboard”

Stereo I/O jack and stereo FX Loop jack, flexible support 9-18V DC power supply, lighter and smaller design, all these features point to Ampero II Stomp not only can be used as an independent multi-effects processor, but also can be an important member of your pedalboard.

8-In/8-Out Audio Interface

Good news for you all artists, Ampero II Stomp with the 8-in/8-out USB audio interface function will sure lend you a helping hand. Whether you want to monitor wet and record dry, or record wet and dry at the same time, and of course reamp, which has been a trend, you got it all in Ampero II Stomp.

Stereo Looper & Tuner

A built-in stereo looper supports max. 60 seconds stereo recording, back up by supplemental yet necessary functions such as undo/redo, 1/2 speed, reverse record/play and more. Built-in sensitive and practical tuner. Adjustable pitch, ranging from 432Hz to 447Hz. The tuner mode can be selected as Bypass, Mute, Through.

Compatible Win/Mac Software

Connect to your desktop or laptop and launch the editor software, with more specific effects descriptions, more straightforward preset editing and more effective patch management, you’ll find the information you need with ultra-convenience.

Touchscreen with Smoother Navigation

Ampero II Stomp is imbued with the fresh UI design to make things more accessible. Besides the touchscreen, editing overall settings and switching patches can be also managed with ease.

Specifications

Effects Digital Audio Signal Processing: 24-bit depth, 44.1kHz sample rate

Frequency Response: 20Hz – 20kHz ± 1dB

Dynamic Range: Max. 127dB (digital to analog)

Inputs: Two 1/4″ Tip Sleeve (TS) instrument jacks with individual input mode selector One 1/8″ Stereo Auxiliary In (Aux In) jack One 1/4″ Tip Ring Sleeve (TRS) expression pedal/momentary footswitch input (EXP/CTRL) jack One 1/4″ Tip Ring Sleeve (TRS) unbalanced stereo FX loop return jack One Standard 5 pin MIDI input jack

Outputs: Two 1/4″ Tip Ring Sleeve (TRS) balanced stereo output jacks One 1/4″ Tip Ring Sleeve (TRS) unbalanced stereo FX loop send jack One 1/8″ stereo

headphones output jack One standard 5 pin MIDI output jack

Input Impedance: Input: E.GT: 1MΩ; A.GT: 4.7MΩ; LINE: 10kΩ FX Loop Return: 100kΩ Aux In: 10kΩ

Output Impedance: Output: 1KΩ FX Loop Send: 1KΩ Headphones: 47Ω

Input Level: Input: -17.78dBu (Nominal); 14.5dBu (Max) FX Loop Return: -17.78dBu (Nominal); 14.5dBu (Max) Aux In: -17.78dBu (Nominal); 20dBu (Max)

Output Level: Output: -11.76dBu (Nominal); 26.25dBu (Max) FX Loop Send: -17.78dBu (Nominal); 14.5dBu (Max) Headphones: -7.4dBu (Nominal); 18.3dBu (Max)

Screen: 4″ 800 x 480 Color Dynamic Display Touch Screen

USB Port: USB 2.0 Type-C port, supports USB Audio 2.0

Impulse Response/IR processing: Supports 24-bit/44.1kHz Mono WAV files, 1024 and 2048 points; Supports up to 50 user IRs

Power Requirements: 9-18V DC Center Negative

Current Consumption: 800mA Max (9V DC)

Dimensions: 185mm(W) x 145mm(D) x 58mm(H)

Weight: 1050g

Customer Reviews

4.3 out of 5 stars 62

4.3 out of 5 stars 80

4.3 out of 5 stars 80

Looper Time
Mono 100 seconds/stereo 50 seconds, no undo/redo function Stereo 60 seconds, with undo/redo function Stereo 60 seconds, with undo/redo function

Effects types
199 460+ 460+

Bluetooth Control
X X Supports mobile App Bluetooth control; supports Bluetooth MIDI

MIDI
X Standard 5-pin MIDI input and output jacks 1/4″ TRS MIDI input and output jacks

Amp Models
52 90 90

Internal Drum Machine

✓
X 100 rhythm patterns

Dimension
134mm×120mm×49mm 185mm×145mm×58mm 301mm×180mm×58mm

Weight
529g 1050g 1895g

Feature
Plus 10 PCS Additional Footswitch Toppers Plus 10 PCS Additional Footswitch Toppers Plus 10 PCS Additional Footswitch Toppers

24-bit signal processing on the Multi Effects Processor , up to 127dB dynamic range, 4-inch 800 x 480 dynamic touchscreen and newly designed UI for more intuitive control, Customizable main display modes and theme colors.
The Multi Effects Pedal Has DUAL effect chain with multiple serial/parallel signal routing support; USB port for firmware upgrading, loading/editing/managing effects/IRs via free Mac/PC software, 8-in, 8-out USB audio interface; Supporting Reamp function.
Up to 12 simultaneous effect modules For The Guitar Effects Pedal, Upgraded effects library delivers 300+ effects, CDCM HD & F.I.R.E. modeling effects including 87 amp models & 68 cab models, 300 presets.
Dedicated IR loader module with 3rd party IR support, up to 50 custom IR slots; 20 classic speaker IRs included – Powered by Digital; Supports up to 2048 IR sampling points for better tonal resolution.
The Multi Effects Processor has Stereo I/O jacks and stereo FX Loop jacks for further routing/tonal possibilities, MIDI I/O jacks and EXP/CTRL jack for expanded controls, 3 assignable footswitches with halo LEDs, Built-in stereo looper with max. 60 seconds recording time and undo/redo function.
